1 door 45 degree transition cabinet LEFT HINGED (24" deep to 12" deep)

Alternative Views:

Retail Price $770.95

Sale Price + Options: $427.95

Product Code: B1D45TRANSITIONLEFT

Cabinet Size (base cabinets)

WIDTH*:

HEIGHT*:

DEPTH*:

Doors and Drawer Fronts

Hinge Side*:

Door and Drawer Front Style*:

Door and Drawer Front Wood Type*:

Door/Drawer Front Prefinishing*:

Glass Door Prep*:

Advanced Options

Toe Kick*:

Disclaimer*:

I have read the "notes" and agree to all conditions

Notes (room ID or custom tag):

Qty:

Description

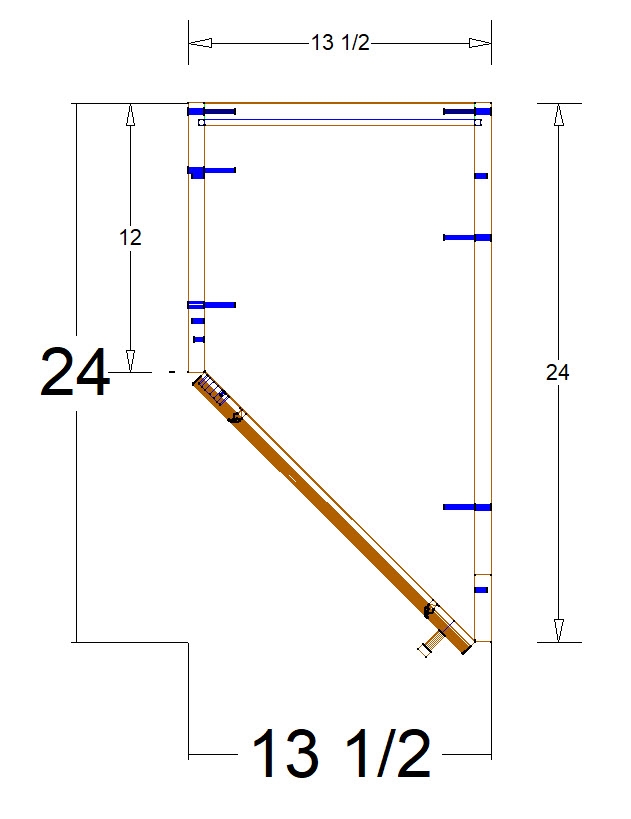

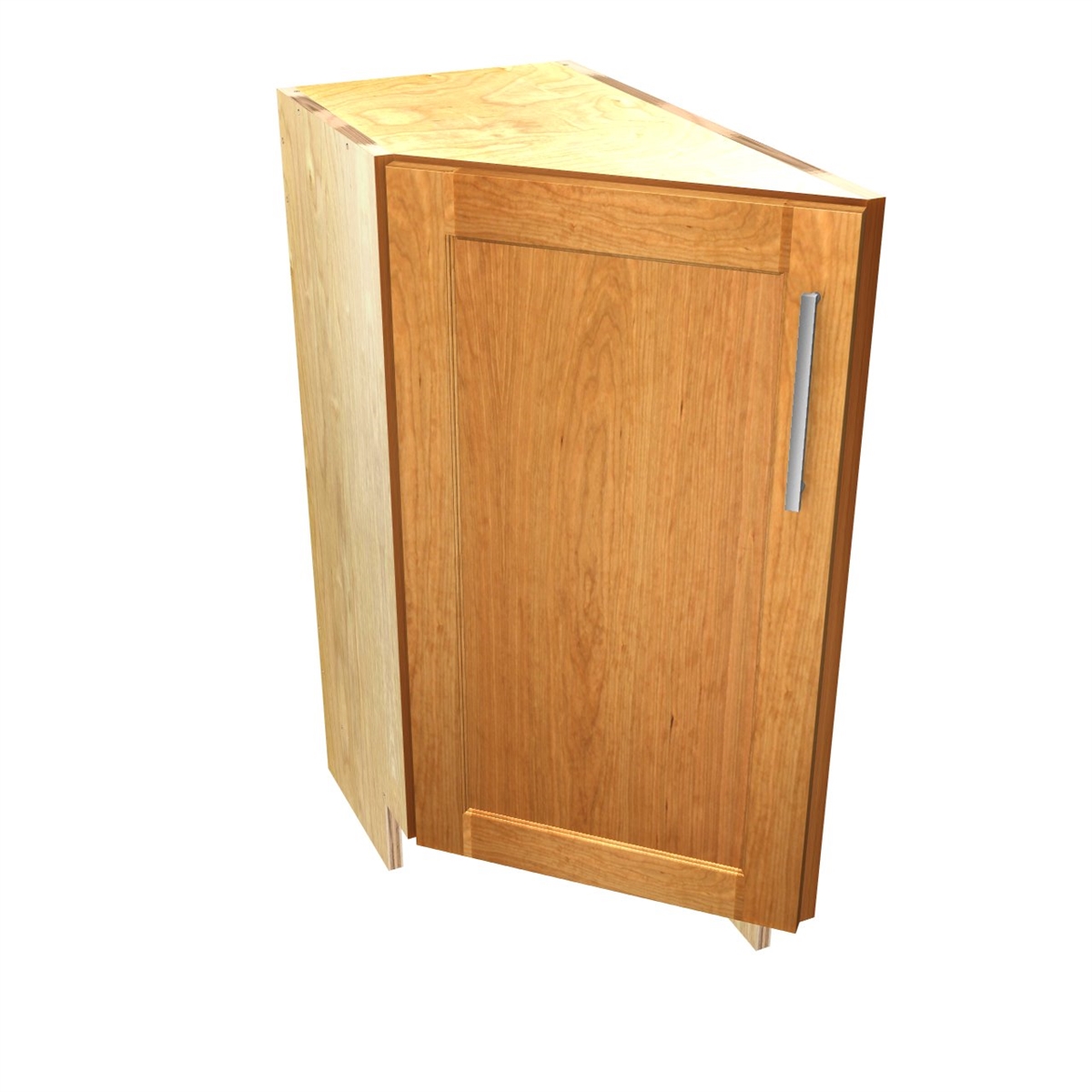

This is an angled base transition cabinet. You can go from a 24" deep cabinet to a 12" deep cabinet run and have access to thee interior of this transition cabinet. This is a very handy cabinet when space get a bit tight! *Soft close hinges are not available on this cabinet.

DISCLAIMER: BY ORDERING THIS CABINET YOU HAVE AGREED TO ALL TERMS LISTED HERE:

1. There is no toe kick plate for this cabinet due to the angle involved. The customer will need to skin the face of the toe kick area using a toe skin, or some sort of material to cover the gap at installation.

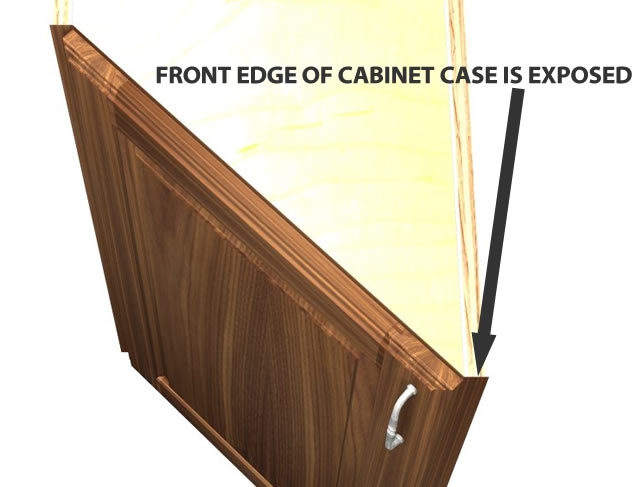

2. Note the way the door overlaps the face of the cabinet. The front edge of the cabinet case (edge banding on the unfinished end) will be exposed on the 24" deep side. This will be exposed to view even when the door is closed. This creates a sort of gap between this cabinet and the one next to it on the 24" deep side. Example:

Features
Custom Cabinets - Made In Oregon using globally sourced materials

Standard Cabinets Construction (the interior is not visible once doors/drawer are closed)

All cabinets are shipped ready to assemble (i.e. flat packed)
Full overlay (flush look) frame-less construction (European style, confirmat screw assembly, no glue or additional tools needed, just a screwdriver)
Full access (maximum storage capacity with no wasted space)

Materials
Doors are custom made and hand sanded in Oregon using high quality hardwoods.
Cabinet Cases are made in Oregon using globally sourced 3/4" thick birch plywood. Veneer is an ultra durable, baked-on UV clear finished real wood Birch veneer. Plywood core is a 3/4" thick core (11 ply, 9 ply, or 7ply, depending on availability).
Drawer Boxes are made in Oregon using globally sourced 5/8" solid Rubberwood finger joint lumber (clearcoat finished in a matte sheen, shipped fully assembled and notched for under-mount drawer slides, *dovetailed drawer box joints are left raw wood and will not have a finish applied).

Hardware
Hinges are made in North Carolina, Blum "Clip Top" Blumotion (soft closing, self closing)
Drawer slides are made in USA, BLUM Tandem+Blumotion, Under-mount, Soft-Close, full Extension, 100lbs capacity
All needed hardware for assembly is included with your order (includes assembly screws, shelf pins, hinge plates, etc)
*Knobs and Pulls are not included with any of our cabinets

Notes
*Construction holes will be visible on the sides, top, and bottom of the cabinet once assembled.
**Finished end panels (ordered separately) should be ordered to finish off the exposed cabinet sides after installation.
